Dental instruments · Model DCL-100-E1

Polymatech Dental Curing Light

Light, engineered for every smile. A cordless LED curing light with six clinical modes, constant optical power output and a charging base that checks light intensity.

Request a quotation Brochure (PDF) Flyer (PDF)

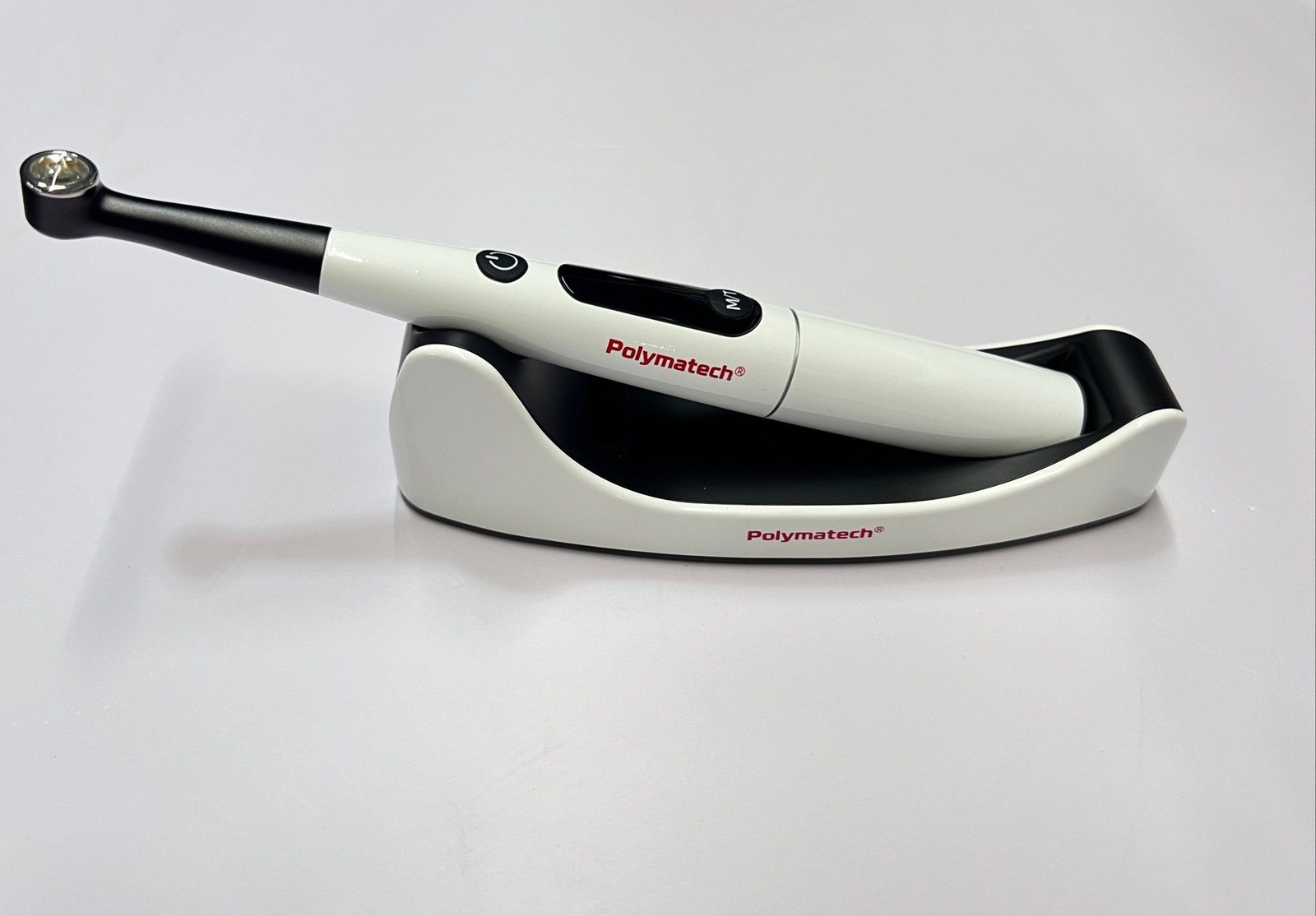

Polymatech Dental Curing Light DCL-100-E1 on its charging base

Built-in working modes

385–515 nm

Wavelength range

2,500 mW/cm²

Peak intensity, Bracket mode

2,000 mAh

Battery, with charging base

Features

Built for the dental chair

Feature

Constant optical power

Curing performance is not affected as the battery level falls.

Feature

Light-intensity check

The charging base has a built-in light-intensity detection function.

Feature

Aluminium-alloy body

Integrated industrial aluminium housing for durability and heat dissipation.

Feature

Curing depth

Not less than 4 mm within 10 seconds in light-cured composite resin.

Feature

English interface

Clear, intuitive display, with automatic power-off after 5 minutes of inactivity.

Feature

Low-battery protection

Monitors battery level and shuts down automatically when it is low.

Working modes

Six working modes

Restoration: Blue light · 800–1,000 mW/cm² · 5, 10, 15 or 20 s
Pulp: Blue light · 800–1,000 mW/cm² · 5, 10, 15 or 20 s
Orthodontic: Blue light · 1,600–1,800 mW/cm² · 3 s pulse, 1 s interval; 5 or 10 cycles
Bracket: Blue light · 2,100–2,500 mW/cm² · 1, 2 or 3 s
Progressive: Blue light · Final intensity 800–1,000 mW/cm² · 5, 10, 15 or 20 s
Inspection: Violet light · — · 30 or 60 s

Operation: long-press the power key for 2 s to set the irradiation time, then short-press to change it. In time setting, long-press for 1 s to switch to mode setting, then short-press to change the mode.

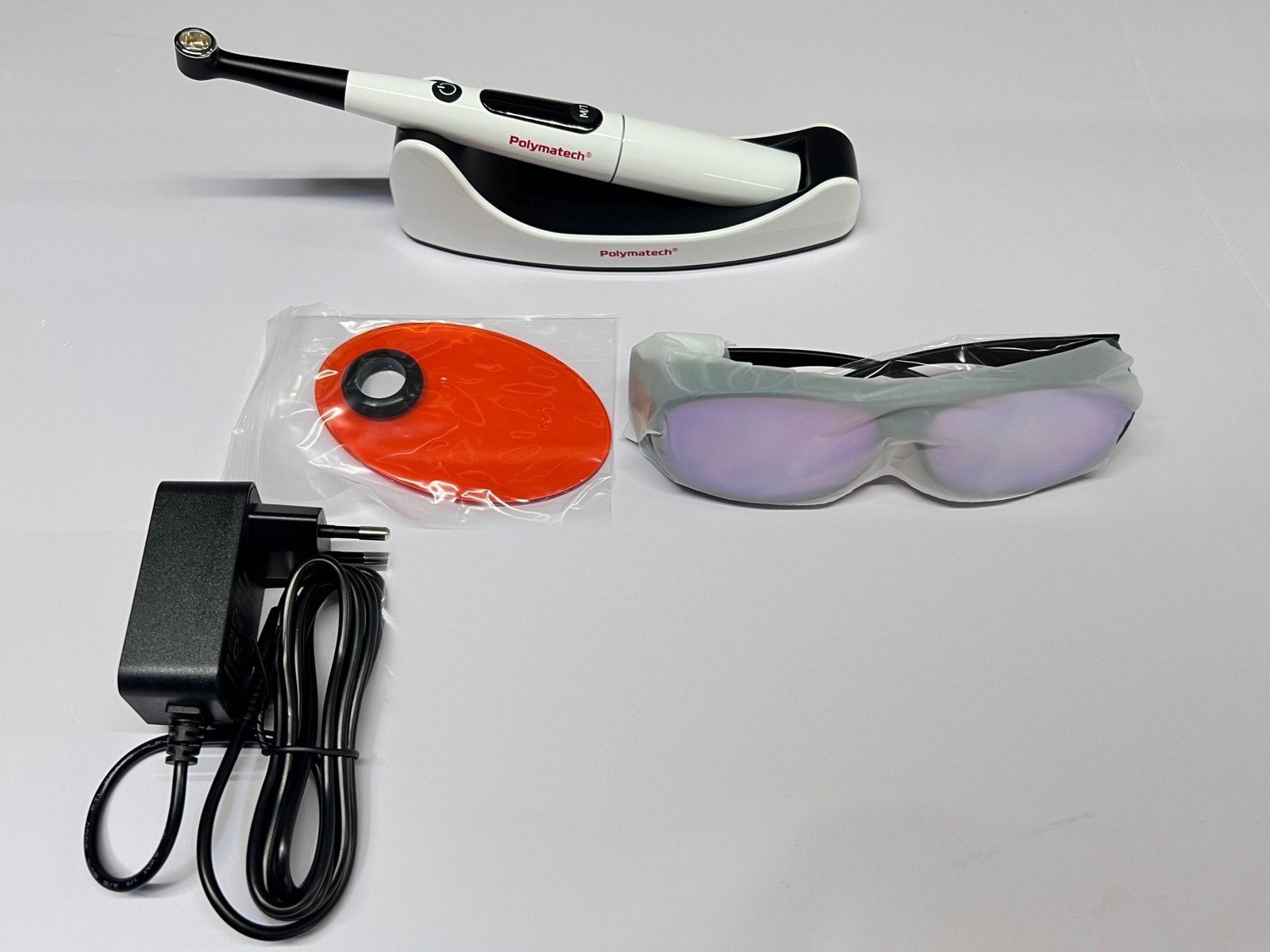

In the box

Supplied with the device

Handpiece: Curing light handpiece
Base: Charging base with light-intensity detection
Protection: Protective glasses and orange light shield
Power: Power adapter, plug to suit the destination country

Product video

See it in use

Technical specification

Model: DCL-100-E1
Power input: AC 100–240 V, 50/60 Hz, max. 0.4 A
Power output: DC 5 V, 1 A
Battery capacity: 2,000 mAh
Main unit dimensions: 200 × 22 × 22 mm
Main unit weight: Approx. 110 g
Wavelength range: 385–515 nm
Effective optical area: ≥ 50 mm²
Optical output: Constant optical power; curing effect unaffected as the battery level falls
Curing depth: ≥ 4 mm within 10 s (light-cured composite resin)
Interface: English display; auto power-off after 5 minutes of inactivity
Housing: Integrated industrial aluminium alloy
Low-battery protection: Automatic shut-down when battery is low
Charging base: Built-in light-intensity detection function
Light guide: Optional metal guide wand, rotates 360°

Specifications are subject to change without notice. Curing results depend on the composite material, technique and exposure time used.

Supply in ASEAN

Manufacture, supply and warranty

Manufactured by: Polymatech Electronics Limited, India
Supplied in ASEAN by: AEIM Pte. Ltd., 163 Kallang Way, #04-18, Mapletree Hi-Tech Park, Singapore 349256

Each country of supply has its own medical-device requirements: in Singapore these are set by the Health Sciences Authority (HSA), in Malaysia by the Medical Device Authority (MDA), in Indonesia by the Ministry of Health (Kemenkes) and in Vietnam by the Ministry of Health. Products are supplied in each country only in accordance with that country’s requirements. Availability and registration status differ by country; please contact sales@aeimglobal.com.

Warranty: 1 year standard; 2 years when registered within 7 calendar days of purchase at www.aeimworld.com/register-product.html. Claims: service@aeimglobal.com · Warranty policy (PDF)
